Features
● Support QR CODE printing
● Printing image and characters with high speed,the best printing quality and reliable performance
● Built-in LED and beeper to avoid order missing
● Printer status monitoring
● Partial/full option cutter, no paper jamming problem
● Support Linux and Windows system
● Compatible with EPSON ESC/POS commands
● Support 80MM paper roll printing




Printing
● Printing method : Direct thermal
● Print width : 80mm
● Column capacity : 576 dots/line 512 dots/line
● Printing speed : 300mm/s

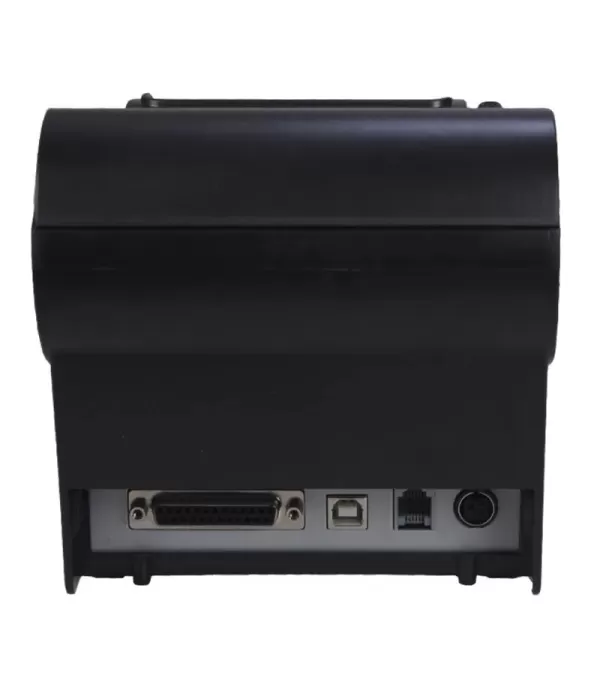

● Interface : USB
● Printing paper : 79.5±0.5mm×φ80mm
● Line spacing : 3.75mm (Adjustable by commands)
● Column number : 80mm paper: Font A - 42 columns or 48 columns/Font B - 56 columns or 64 columns/Chinese,traditional Chinese - 21 columns or 24 columns
● Character size : ANK，Font A：1.5×3.0mm（12×24 dots） / Font B：1.1×2.1mm（9×17 dotsSimplified /traditional Chinese: 3.0×3.0mm（24×24 dots）

Cutter
● Auto cutter : Partial

Barcode Character
● Extension character sheet : PC347（Standard Europe）、Katakana、PC850（Multilingual）、PC860（Portuguese）、PC863（Canadian-French）、PC865（Nordic）、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、PC858、IranII、Latvian、Arabic、PT151（1251）
● Barcode types : UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128
● 2D code : QR Code / PDF417

Buffer
● Input buffer : 2048k bytes
● NV Flash : 256k bytes

Power
● Power adaptor Input : AC 110V/220V, 50～60Hz
● Power source Output ：DC 24V/2.5A
● Cash drawer output : DC 24V/1A

Physical characteristics
● Weight 3KG
● Dimensions 194.5×145×147mm ( D×W×H)

Environmental Requirements
● Work environment Temperature (0～45) humidity(10～80%)
● Storage environment Temperature(-10～60℃) humidity(10～80%)

Reliability
● Cutter life 1.5 million cuts
● Printer head life 100KM
